Material of Construction
Hose Material : SS 321, SS 304 L, SS 316 L
Braiding Material : SS 304
Temp. Range
up to 300 Deg. C

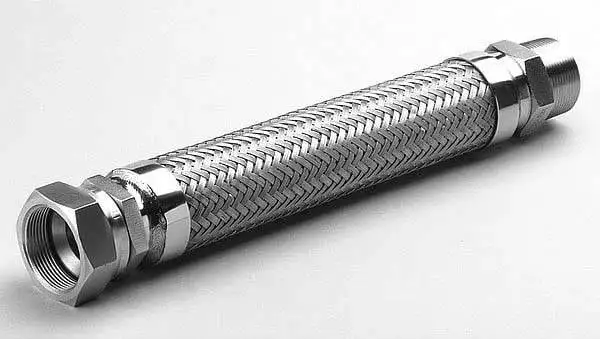

Stainless steel hoses are optimal when high-temperature resistance and flexibility are crucial. They excel in conveying steam, thermic fluids, and chemicals. Our SS hoses, featuring SS braiding, withstand higher pressures and are available in diameters ranging from ¼” to 12 inches. Not only are stainless steel hoses abrasion-resistant, but they also dampen vibrations significantly. Avoid compromising on quality; choose Flexotech for reliable stainless steel hose solutions.
Enquire Now!Diameter(mm) | Max pressure | Nominal Bend | ||
---|---|---|---|---|
ID (mm) | OD (mm) | Working pr. | Burst pr. | radius (mm) |
6.3 | 10.6 | 150 | 600 | 80 |
8.5 | 13.4 | 112 | 448 | 120 |
10 | 15.6 | 97 | 388 | 130 |
12.1 | 18.2 | 75 | 300 | 140 |
16.6 | 23.3 | 60 | 240 | 160 |
20.2 | 28.3 | 62 | 248 | 170 |
25.4 | 33.7 | 43 | 172 | 190 |
33.6 | 43.2 | 46 | 184 | 260 |
40 | 51.6 | 42 | 168 | 300 |
50.4 | 62.5 | 32 | 128 | 320 |
62.8 | 79.1 | 35 | 140 | 460 |
78.7 | 97.5 | 25 | 100 | 660 |
97.8 | 116.6 | 25 | 100 | 750 |
130 | 157.5 | 14 | 56 | 710 |
154.5 | 182.5 | 10 | 40 | 815 |
204.5 | 236 | 8 | 32 | 1015 |
254 | 285 | 7.5 | 30 | 1270 |
Flexotech offers top-quality stainless steel hoses providing exceptional temperature resistance and excellent performance in various environments, including high ambient temperatures, cryogenic applications, and fluid or gas mediums. These hoses are perfect for handling pharmaceutical applications due to their non-contaminating nature, easy sanitization, and resistance to wear and tear, ensuring a long shelf life.

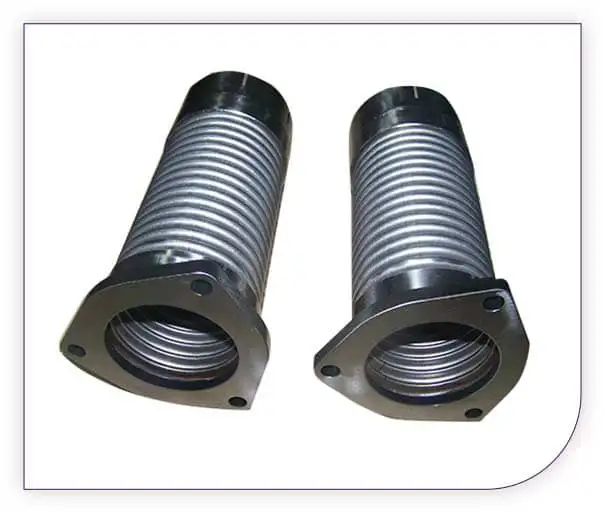

The SS corrugated hoses from Flexotech are crafted from superior-grade stainless steel, which offers remarkable resistance to corrosion, chemical abrasion and the ability to withstand high pressure and compression. These hoses are 100% quality checked and tested, manufactured using cutting-edge CNC machinery and the latest techniques to ensure structural integrity, complying with Indian and international industry standards guidelines.
In addition to their functional excellence, Flexotech's stainless steel corrugated below hoses boast an elegant and aesthetic design, making them a perfect fit for various applications and enhancing the overall appeal of the space.
Flexotech also provides stainless steel flanged hose for specific needs, ensuring a secure and reliable connection for demanding applications. Whether you require stainless steel flexible hoses or SS flexible hose pipe, Flexotech delivers products that excel in performance and appearance.
As a leading and reputable manufacturer in stainless steel hoses in Bangalore the industry, we take pride in offering a wide range of stainless-steel hoses meticulously crafted from several grades of premium stainless steel. These hoses come with various flexible assemblies, providing a comprehensive selection for diverse applications across various industries.
Heavy Duty
Plywoord
Press
Steam Turbines
& more...
Chemical Plants
Pharma
Steel Mills
Some quick example text to build on the card title and make up the bulk of the card's content.
ReadmoreSome quick example text to build on the card title and make up the bulk of the card's content.
ReadmoreMetallic flexible hoses transfer various fluids and gases in high-pressure applications, offering flexibility and durability.
Metallic flexible hoses are constructed with metal layers, enhancing strength and resistance to high temperatures and pressures.
Stainless steel flanged hoses offer corrosion resistance, secure connections, and leak-free performance, making them suitable for critical fluid transfer applications.
Flanged hoses feature pre-fitted flanges, simplifying installation and ensuring a tight and reliable connection between equipment.
SS corrugated hoses are ideal for applications requiring flexibility, vibration absorption, and resistance to external mechanical forces, making them suitable for industrial use.
Stainless steel hoses offer superior temperature resistance, long-lasting durability, and corrosion resistance, making them suitable for various industries.
Yes, stainless steel hoses are hygienic, making them safe for use in food, beverage, and pharmaceutical industries.

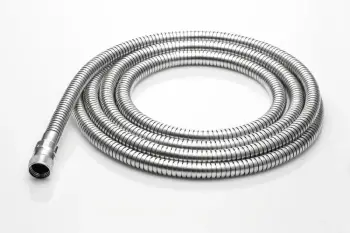

Stainless steel flexible hoses are designed with a corrugated structure, allowing them to bend and flex without compromising the flow of fluids or gases.
Stainless steel flexible hoses find applications in petrochemical, automotive, aerospace, and power generation applications due to their reliability and versatility.
